Do You Know How To Connect The WTP-D RV24YN Series Potentiometer?
The WTP-D RV24YN series potentiometer is a common electronic component and a[Ws1.1] standard part in industrial control. Do you know how to connect its pins correctly?
INTRODUCTION

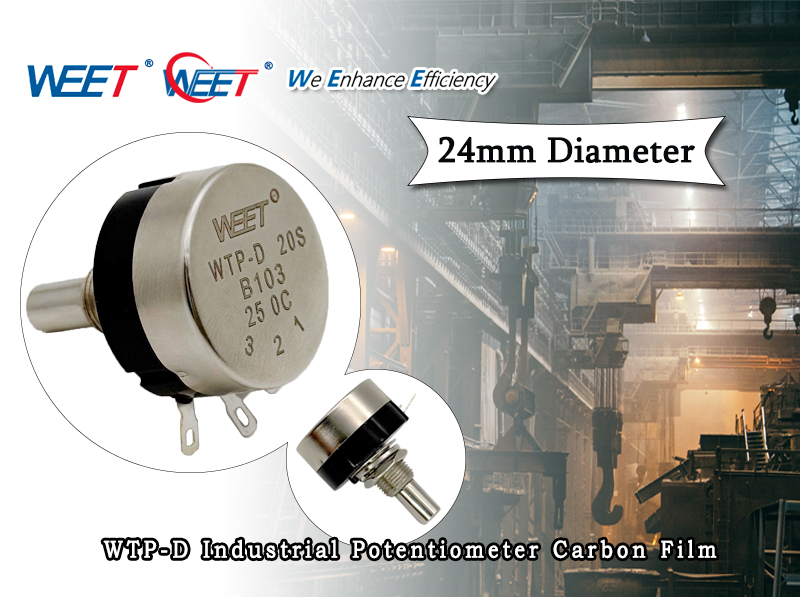

First, locate the pin numbers: 1, 2, and 3, which correspond to the two fixed ends and one wiper (sliding terminal) of the 24mm single turn potentiometer.
Pin 1: Positive input voltage
Pin 3: Ground (GND)
Pin 2: Output signal terminal
About RV24YN series potentiometer common mistakes: Never leave the middle pin floating, as this will cause an open circuit and failed adjustment. When used as a variable resistor, it is recommended to short the floating Pin 3 to Pin 1 to reduce electrical noise.
Now that we understand the connections, how do we choose the resistance value?
B103 (10kΩ): The most universal type, suitable for most voltage division applications.
B502 (5kΩ): Ideal for low-voltage, small-signal circuits.
B503 (50kΩ): Designed for high-impedance audio applications.
Choose high-quality WEET WTP D RV24YN series potentiometer for more precise circuit adjustment and more durable equipment performance, providing reliable core control support for your projects.
